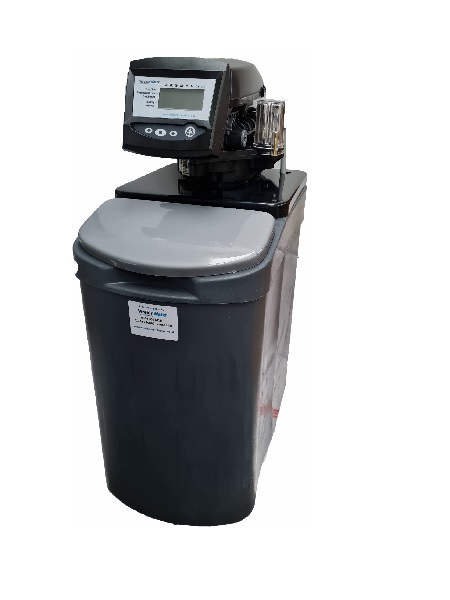

This water softener is a Automatic Timed controlled valve with easy to use digital display. Setting up can be done in minutes. Being timed, this machine can used on both high and low volume conditions. The cabinet is well designed with easy access to the salt bin for refilling.

Timed settings can be selected for 0.5 of a day up to 21 days between the cleaning cycle.

The unit can be modified so that the unit can be fitted side on. This optional extra is done to order only and the salt bin can be to the left or right hand side of the valve. Please call us for more detail

A timed model of this type is ideal for low volume demand on highly sensitive equipment prone to scaling such as steam rooms and saunas. Scale free water significantly reduces down time and maintenance costs

H.W.D 530mm x 270mm x 460mm

TECHNICAL
Connections Inlet/Outlet 3/4" BSP male parallel
Overflow 1/2" Hose connector
Drain 1/2" Hose Connector
Transformer-13amp/ 12V
Operating Parameters: Max operating Pressure 8 bar
Min Operating Pressure 1 bar
Max water temperature 30 degree C
Min water temperature Protect from freezing

Using Autotrol Valve technology, this machine will be very reliable and designed to give lower water and salt consumption than conventional softeners

All Wrekin Water Softeners incorporate a high quality resin that has been specially purified for household use, giving a consistent performance, longer life with good running costs

The AUTO10-TMED has a 2 year valve warranty and covers genuine mechanical or electronic failure of the valve from the date of purchase and subject to the machine has been correctly installed. A 5 bar pressure limiting valve should be installed to protect the machine from excessive pressure. It does not cover failure due to external factors such as contamination from the incoming water supply, excessive pressure and weather related problems.
