Sita HDPE Series UV System (1 to 980 m3/hr)
Non corrosive high density polyetherlene (UV resistant). Designed for corrosive environments and seawater applications.

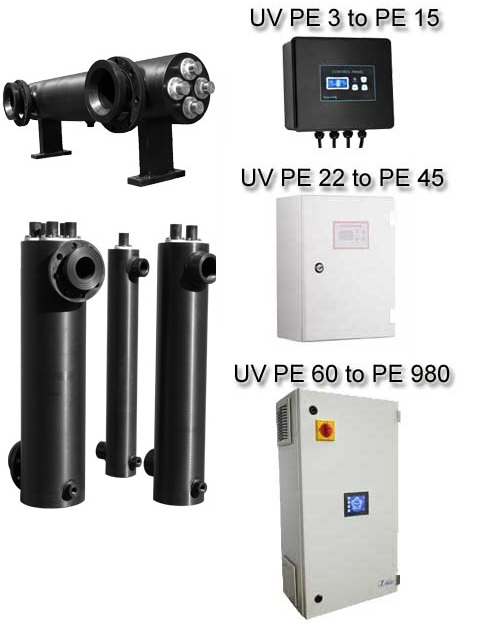

The. PE series UV-C systems are composed by: - HDPE reactor that contains the special germicidal lamps - Control panel, made in compliance with the CE standard
Main Application: Water Disinfection for: - Fish farming - Sea water application - Aquariums and Swimming pools
Certification: CE and NVHI
Technical specification: Flow rates: from 3 to 980 m3/h (depending on UV –C transmittance value) UV-C dose after 9000 hr: 400 J/m2 Power: from 40 W to 5300 W Connections: threated and flange type Lamps: High efficiency low pressure lamps (up to UV PE 60) – 9.000 hrs High efficiency low pressure amalgam lamps (from UV PE 110) – 14.000 hrs Sensor: UV-C selective sensor (only on Plus models up to UV PE 60 and standard starting from UV PE 110) Max Pressure: 6 bars Temperature range: 0 – 35 °C UV reactor material: HDPE - High Density Polyethylene Control Panel material: Plastic material – up to UV PE 15 Painted steel RAL 7035 – from UV PE 22
HDPE - High Density Polyethylene Reactor:
The UV reactor is made in HDPE - high density polyethylene material. This is the best material for corrosive liquids and sea water, in fact HDPE is UV-stabilised. Thanks to special welding procedures the UV chamber can be used up to a max pressure of 6 bars. The reactors have a horizontal or vertical position depending on the model.
Configuration: Z shape (up to UV PE 60), U shape (starting from UV PE 110) Mounting: vertical (up to UV PE 60), horizontal (starting from UV PE 110) Connections: Female threated (up to UV PE 15), Flanges PN 6 (UNI EN 1092 -1) - (starting from UV PE 22) UV sensor holder : Teflon UV sensor: Teflon selective sensor Seals: Silicone and Viton
Control Panels:
Up to UV PE 60 - Polypropylene control box (UV PE 3 to UV PE 15) - Steel painted control panel box (RAL 7035) (from PE 22 to PE 60) - Protection class: IP 54 - Status messages - Microprocessor control - Total hour meter - Resettable hour meter (only on Plus version) - Control of each lamp - Alarm 220 V NA/NC outlet - Alarm Free contact outlet - Remote on/off (optional) - 4-20 mA outlet (optional) - UV intensity: % (only on Plus version) - Control of temperature - irradiation (pre set alarm threshold) (only on Plus version) - GSM box for remote monitoring and control with mobile phone PE22- PE 60 (optional) - Temperature Range: (0-40°C)4/5 PE Series
From UV PE 60 to UV PE 980 - Steel painted control panel box (RAL 7035) with 2 doors, main switch, cooling fans and UV cube monitor - Protection class: IP 54 - Status messages ( 5 languages: Italian, English, Spanish, Portuguese, German) - Microprocessor control - Total hour meter - Resettable hour meter - Control of each lamp - Electrical panel temperature control - ON/OFF timer - Alarm 220 V NA/NC outlet - Remote on/off - Alarm Free contact outlet - 4-20 mA outlet (optional) - UV intensity: W/m2 or % - Pre alarm UV intesity - Shutdown for high temperature in the UV chamber and in the electrical panel - Control of temperature - irradiation (pre set alarm threshold) - Shut off for flooding - Provision for connection with external flow: online flow visualisation, shut off in case of no flow, possible shut off for low flow, possible shut off for high flow (optional) - Datalog of the flow rate (optional) - Datalog of irradiance and panel and chamber temperature (optional) - GSM box for remote monitoring and control with mobile phone (optional) - Temperature Range: (0-45°C)
