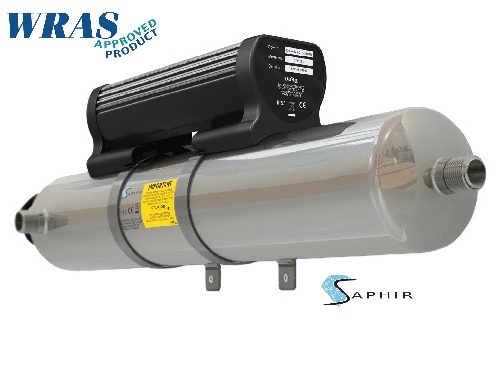

The Saphir system is a compact, economical UV System that is designed with the consumer in mind. Using commonplace single ended, low pressure UV Lamp technology, making the system not only energy efficient but also for replacement UV lamps. The single ended UV lamp assists in ease of servicing.

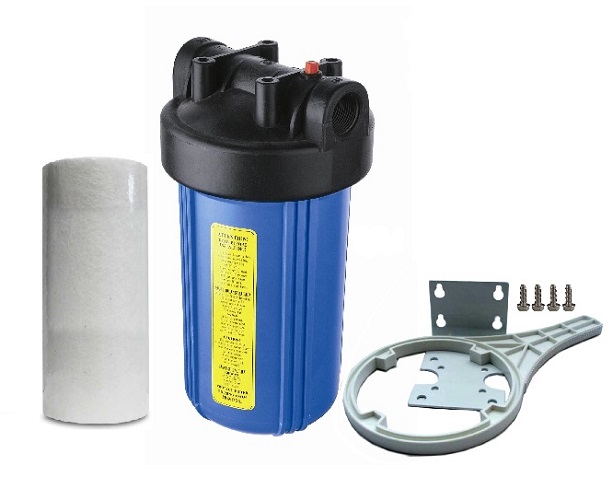

HF10BB - Filter Housing
SPECIFICATIONS
Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar
Max water temp:- 20°C Water, 30°C ambient
Height:- 350 mm(470mm With Bracket)
Width 200mm
Depth:- 200 mm
Inlet / Outlet:- 1'' Bsp female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 10 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue
Includes:-
Robust Spanner
Built in pressure relief valve
Heavy Duty Powder Coated Metal fixing bracket with Screws


* Flow rate through housing
The maximum flow rate shows the flow through an empty housing. The flow will decrease
according to the type of cartridge installed and the water supply pressure.
