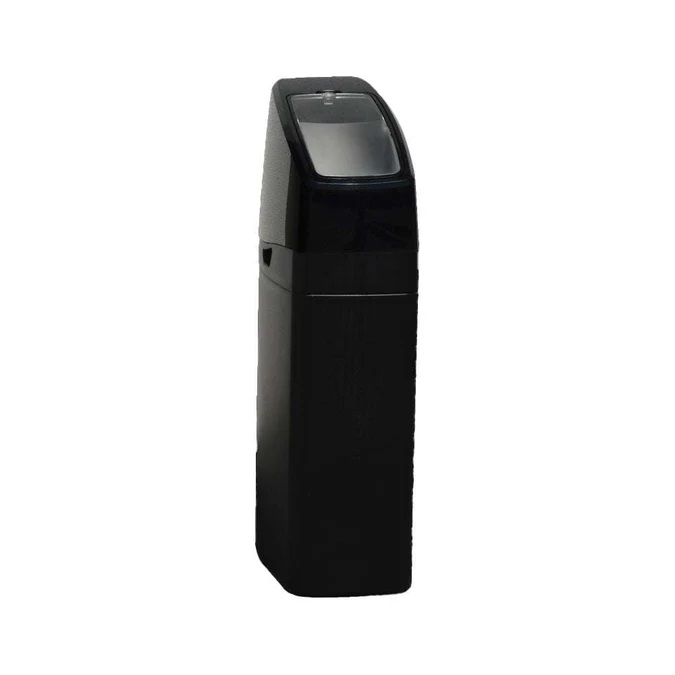

Wrekin Water Softeners LC30M softener is ideally suited to larger homes requiring high flow rates, and a high softened water capacity. The industrial quality control valve enables it to be connected to 22mm pipework or above. Port options of 3/4" or 1" make installation easy without having any effect of flows and performance.

The electronic control system on this softener meters daily water usage, and will select for itself the ideal regeneration day to ensure economical salt usage with the minimum of waste water.
This Softener comes fully assembled and easily installed by a competent plumber. This machine has as standard Logix Digital Control making this machine much easier to programme, whilst the controller gives much more data to get optimum performance from the machine

Machine comes complete with full instructions. All that is required to set is

Time of Day

Hardness level in PPM


Maximum Flow (L/pm) 85
(G/pm) 18.7

Minimum Flow (L/pm) 3.3
(G/pm) 0.72

Capacity (Ltrs) 5850
@ 300 ppmCaCO³

Regen Waste Water (Ltrs) <100 Ltrs

Salt used per regen (Kg) 4


Minimum operating pressure (bar) 1.175
(psi) 25

Maximum operating pressure (bar) 6
(psi) 85

Pressure Drop @ max flow (bar) 2
(psi) 25
Dimensions
Softener Height (mm) 1200
Softener Depth (mm) 500
Softener Width (mm) 300

Connections (in/out) (Inch) 3/4”

Drain Connection (Inch) ½

Electrical Supply (V/Hz) 12/50
